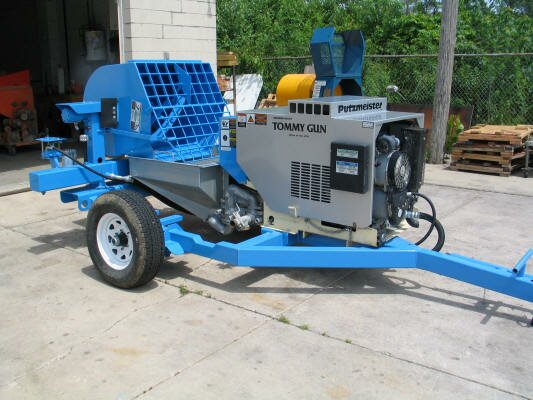

2007 Tommy Gun A3 Putzmeister
Fireproofing Pump for Sale
BANK REPO ONLY 892 HOURS RUNS GREAT
Asking $23k BEST OFFERS CALL
Multiple Configurations
The Tommy Gun A3 Series is available in
several configurations and can be built
to your specific needs. A full range of
options can be specified, including gear
box mixers.
Mixer
Putzmeister Plaster Fireproofing Pump for Sale
Maximum volume 6.7 yd3/hr (5.1m3/hr) 9.6 yd3/hr (7.3m3/hr)
45 bags/hr 60 bags/hr
Pumping pressure 800 psi (55 bar) 1000 psi (68 bar)
Volume control 4-speed 4-speed
pulley and throttle pulley and throttle
Technical Information
Material cylinder
Diameter 3.5" (89mm) 3.75" (95mm)
Stroke 6" (152mm) 8" (200mm)
Hopper capacity 9 ft3 (255L) 9 ft3 (255L)
Outlet diameter 2" (50mm) 3" (76mm)
Engine
Diesel 37 hp Hatz 2M41Z (28kW) 37 hp Hatz 2M41Z (28kW)
Electric 20 hp 220/440V (15kW) 20 hp 220/440V (15kW)
Fuel tank capacity 7 US gal (26.5L) 7 US gal (26.5L)
Compressor 14 ft3/min (396L/min) piston type 14 ft3/min (396L/min) piston type
3 hp (2kW) on electric models 3 hp (2kW) on electric models
Trailer Tag with MIXER
Axle type Torsion Torsion
Axle capacity 2500 lbs (1134kg) 5200 lbs (2359kg)
Tires ST205/75D14 C ST225/75D15 D
Brakes — Electric
Dimensions
Dimensions (L x W x H) 128" x 70" x 51" 173" x 91" x 67"
(3251 x 1778 x 1295mm) (4394x 2311 x 1702mm)
Weight
Diesel 2320 lbs (1052kg) 3800 lbs (1724kg)
Electric 1950 lbs (885kg) —
Mixer* Capacity Power
Diesel 13 ft3 (370L) 7.8 hp (6kW) Hatz 1D41Z
|
