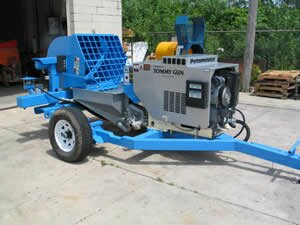

Top high volume fireproofing pump the Tommy Gun with its large 3.75" cylinder, long 8" stroke and 3" outlet to deliver up to 60 bags per hour. The Tommy Gun unit offers four-speed variable drive and an adjustable two-position stroke from the smoothest pumping.

USED Plaster Pump SALES
BEST OFFERS CALL
(503) 283-2105

Click Here Fireproofing Accessories

Configurations

	Diesel	Electric
Tag	*	*
Mobile w/Mixer	*	*

Mixer Diagram

Putmeister Advantages

Heavy-Duty Drive Train
Heavy-Duty Rocker Arms
Dorris� Gearbox
Vertical "Cast Steel"
2-Piston Quincy� Air Compressor
Centralized Lubrication System
Choice of Nozzles

Fireproofing With Complete Confidence-
It's the American Way

Specifications
Maximum volume	9.6 yd�/hr	7.3m�/hr
Maximum volume	60 bags/hr	-
Pumping pressure	1000 psi	69 bar
Material cylinder-diameter	3.75�	95mm
Material cylinder-stroke	8�	200mm
Hopper capacity	9 ft³	255L
Outer diameter	3�	76mm
Power-diesel	37 hp Hatz 2M41Z	(28kW)
Power-electric	20 hp 220/440V	(15kW)
Fuel tank capacity	7 US gal	26.5L
Compressor	14ft�/min piston type 3hp on electric models	(396L/min) (2kW)
Volume control	4-speed pulley and throttle	-

Dimensions USED PUMP SALES CALL (503) 283-2105 begin_of_the_skype_highlighting (503) 283-2105 end_of_the_skype_highlighting
Trailer	Tag	Mobile with Mixer
Axle Type	Torsion	Torsion
Axle Capacity	2500 lbs (1134 kg)	5200 lbs (2359 kg)
Tires	ST205/75D14 C	ST225/75D15 D
Brakes	-	Electric
Dimensions (LxWxH)	128�x70�x51� (3251x1778 x1295mm)	173�x91�x67� (4394x2311 x1702mm)
Weight approx-diesel version	2320 lbs (1052 kg)	3800 lbs (1724 kg)
Weight approx-electric version	1950 lbs (885 kg)	-
Note: Mobile w/o mixer weight and dimensions will be less than shown for mobile w/ mixer.
Mixer	Capacity	Power
Mixer*- gas version	13 ft³ (370L)	13 hp (10kW) Kohler CH13
Mixer*-diesel version	13 ft³ (370L)	7.8 hp (6kW) Hatz 1D41Z

* Hydra-Flow™ mixer standard; other brands available. Weights vary with options selected.
