| SPECIFICATIONS FOR WALK-BEHIND ROLLERS | ||||
|
MODEL |
P23/16F (R) |

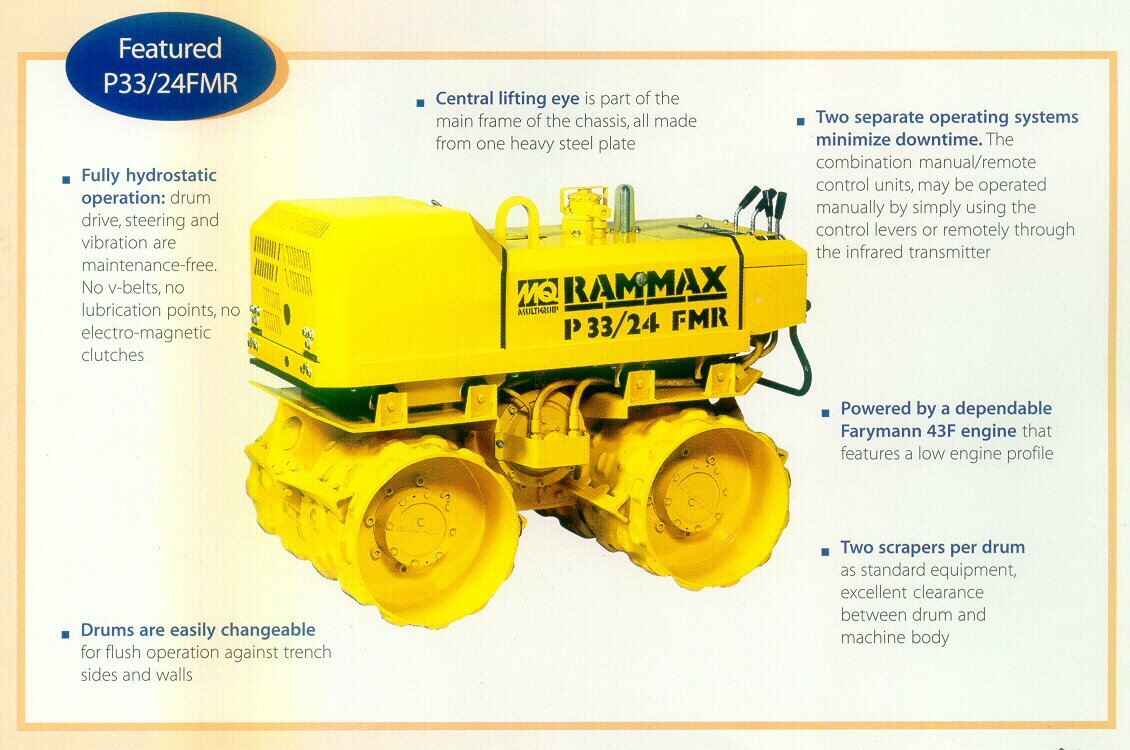

P33/24FM (R) |
P33/24HM (R) |
P33/24HHMR |
| Operating Weight lb. (kg) | 1,544 (700) | 2,999;2,911 (13,360;1320) | 3,087;2,999 (1,400;1,360) | 3,175;3,263 (1,440;1,480) |
| Overall Length in. (cm) | 63 (160) | 80 (202) | 80 (202) | 69.9 (1,775) |
| Overall Width in. (cm) | 16;20;23 (40;50;60) | 33;24 (85;63) | 33;24 (85;63) | 33;24 (85;63) |
| Overall Height in. (cm) | 35.4 (90) | 46.1 (117) | 47.2 (120) | 48.0 (1,220) |
| Drum Width in. (cm) | 16;20;23 (40;50;60) | 33;24 (85;63) | 33;24 (85;63) | 33;24 (85;63) |
| Drum Diameter in. (cm) | 14.6 (370) | 21.7 (550) | 21.7 (550) | 19.7 (500) |
| Amplitude in. (mm) | 0.071 (1.8) | 0.075 (1.9) | 0.075 (1.9) | 0.087 (2.2) |
| Centrifugal Force lb. (kg) | 7,875 (3,572) | 15,652 (7,100) | 15,975 (7,246) | 18,500 (8,391) |
| Vibrations per Minute - VPM | 2,400 | 1,800 | 1,800 | 1,800 |
| Dynamic Linear Force per Drum lb./in. (kg./cm) | 16"-246 (43.9) 20"-197 (35.2) 23"-171 (30.6) | 24"-326 (58.2) 33"-237 (42.3) | 24"-333 (59.4) 33"-242 (43.2) | 24"-364 (65) 33"-269 (48) |
| Hydraulic Oil Tank Cap. - gal. (lt.) | 11.9 (45) | 15.9 (60) | 15.9 (60) | 15.9 (60) |
| Engine Make/Model | Farymann 32A | Farymann 43F | Hatz 2G40 | Hatz 2G40 |
| Engine Power - HP (kw) | 8.5 (6.3) | 14.5 (10.7) | 18 (13.2) | 18.5 (13.8) |
| No. of Cylinders | 1 | 1 | 2 | 2 |
| Diesel Fuel Tank Cap. - gal (lt) | 2.4 (9) | 2.4 (9) | 5 (19) | 5.9 (22) |
| Engine RPM | 2,600 | 2,600 | 2,600 | 2,600 |
| Starting Method | Crank | Electric | Electric | Electric |
| Travel Speed High-ft. per min. (m. per min.) | 0-115 (0-35) | 0-115 (0-35) | 0-115 (0-35) | 0-115 (0-35) |
| Travel Speed Low-ft. per min. (m. per min.) | 0-52 (0-16) | 0-52 (0-16) | 0-52 (0-16) | 0-52 (0-16) |
| Gradability w-w/o Vib. percentage | 45/55 | 45/55 | 45/55 | 45/55 |
RIDE-ON SPECIFICATIONS
